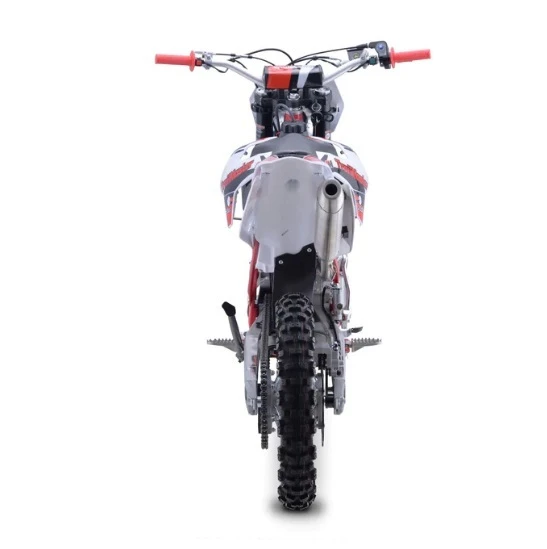

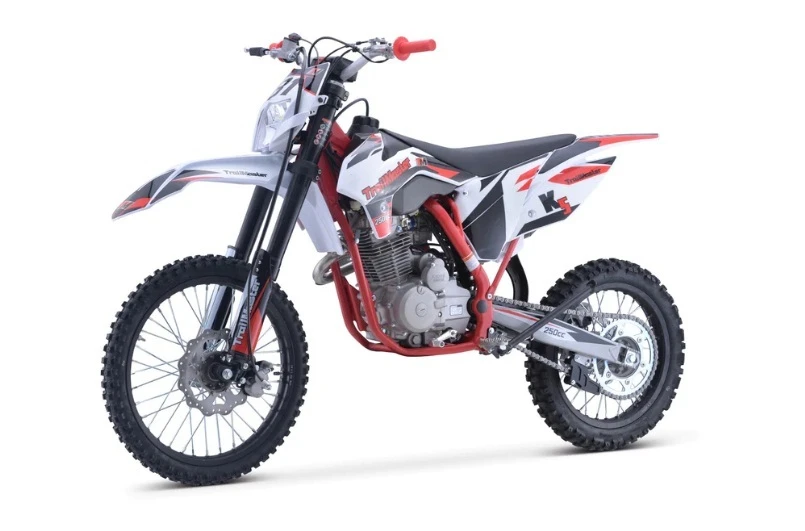

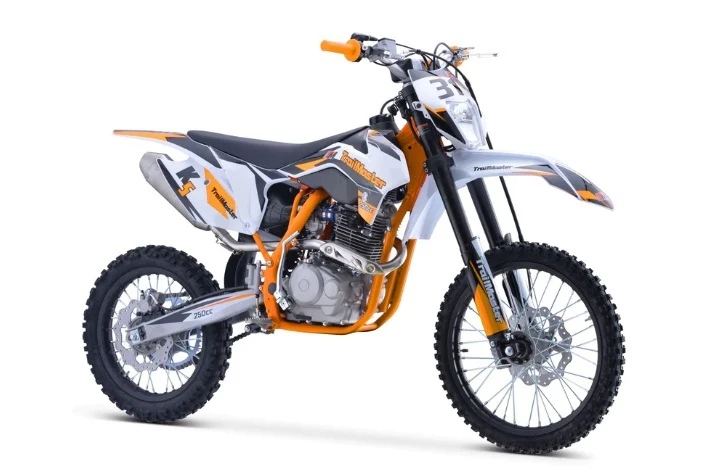

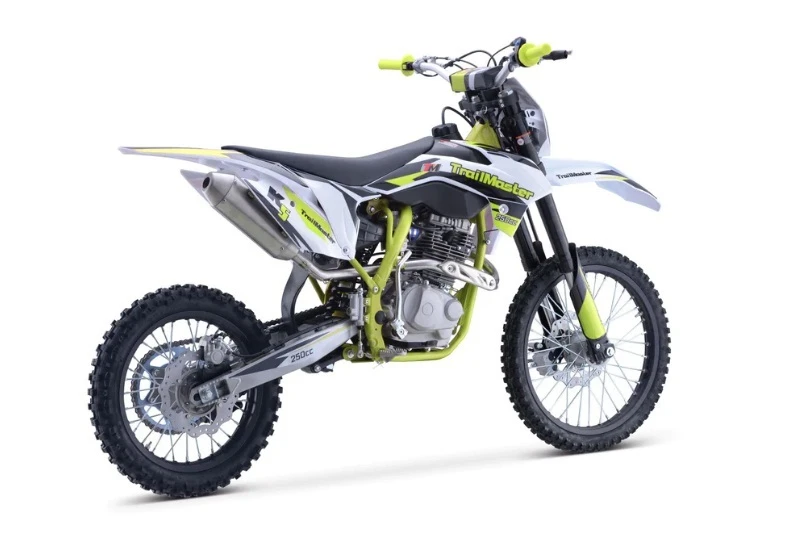

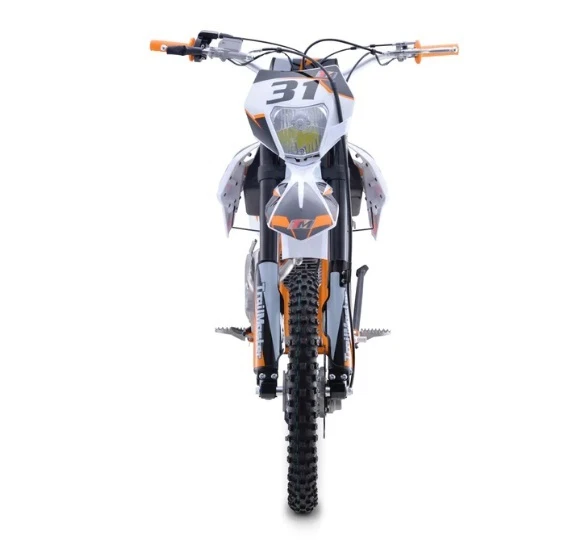

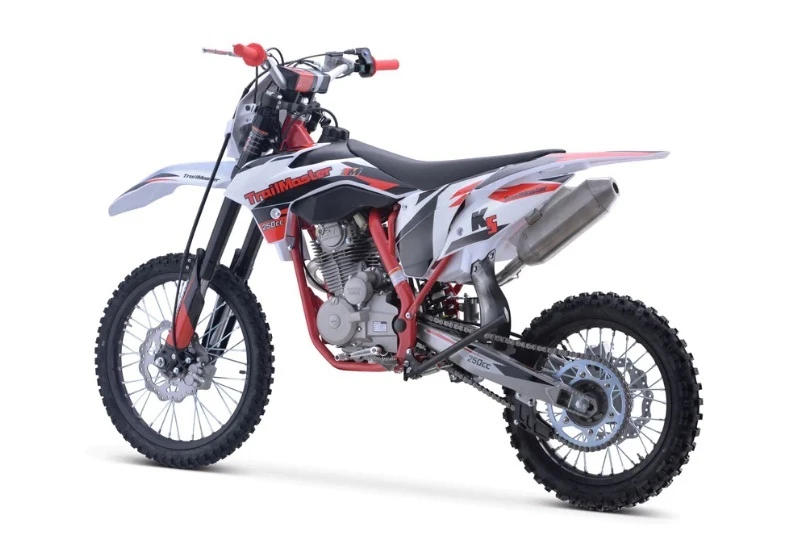

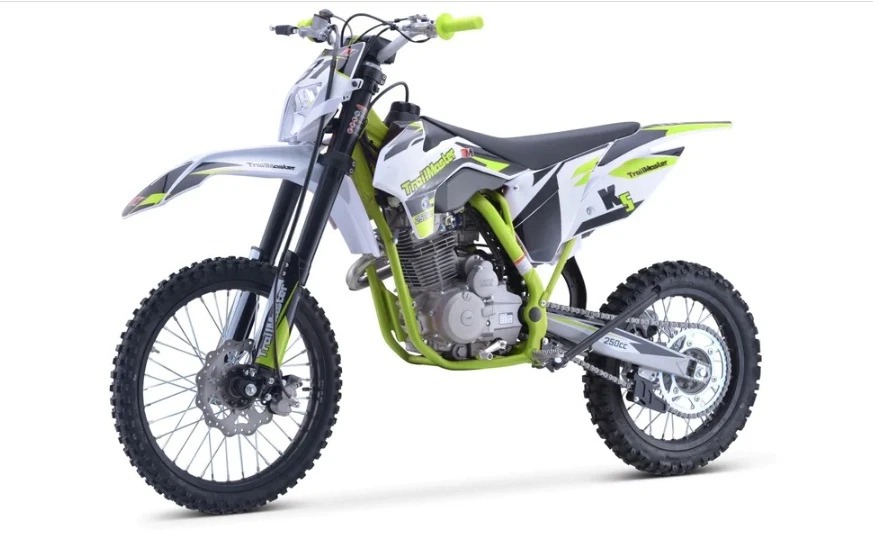

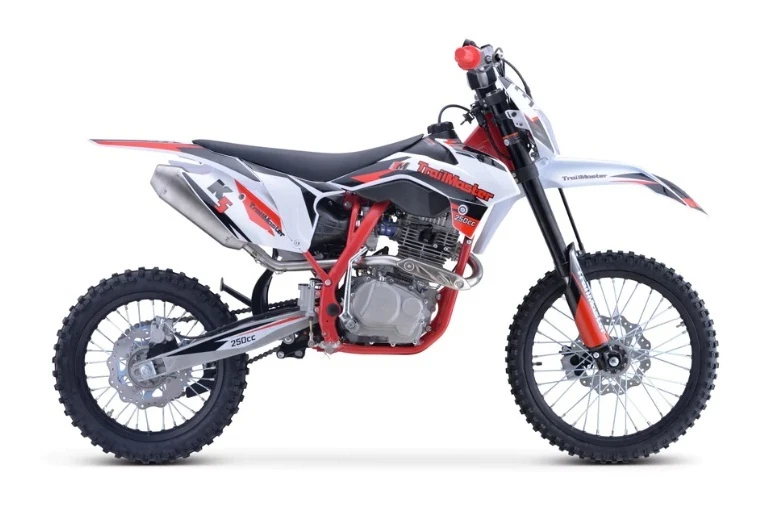

Trailmaster Dirt Bike TM31 Full Size Offroad 250 Electric and Kick Start, 5 Gear Manual Clutch

The Trailmaster Dirt Bike TM31 is a full-size offroad bike featuring both electric and kick start options. Equipped with a 250cc engine, manual clutch, and 5-speed gear system, it offers versatile performance for adventurous riders.

The Trailmaster Dirt Bike TM31 is a robust off-road machine featuring a ZSCB250D-G engine, a single-cylinder powerhouse with a displacement of 250cc. It operates on a reliable 4-stroke mechanism and is air-cooled for optimal performance. With a maximum power output of 16 horsepower, it delivers impressive torque for tackling varied terrains. Its transmission system utilizes a #520 chain, coupled with a front 13T and rear 47T sprocket setup, ensuring smooth power delivery and efficient performance across the board.

Features

Powerful Zhongshen 223cc air cooled engine
Electric and kick start, 5 gear manual clutch
Lightweight ,Steel Tube Frame
53.1 “ wheel base and 34.6” seat high
Front tire 19”/Rear Tire 16”
Dual Piston Caliper, 240mm Disc front brake
Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel front shock
450mm Spring Pre-load None-Adjustable Rear Shock
Large 2 gallon fuel tank
LED Headlight

TECHNICAL SPECS

Parts breakdown set up manuel

TM Dirt Bikes 31-33-36-38

Parts

General Information

Engine Type ZSCB250D-G, Single Cylinder, 4-Stroke, Air Cooled
Displacement 223 cc
Max Power 16 hp
Max Torque 17.5/5500 N.m/r/min
Compression Ratio: 9.3~9.9:1
Shift Type: Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears
Bore and Stroke: 65.5 x 62.2 mm
Min.Fuel Consumption: ≤354(g/Kw.h)
Start Type Electric & Kick Start
Carburetor PE28
Ignition Digital CDI
Transmission #520 Chain, FT: 13T/RR: 47T Sprocket

Size Data

Front Fork Φ51*Φ54-830mm Inverted Hydraulic Forks, 150mm Travel
Rear Shock 450mm Spring Pre-load None-Adjustable Shock
Front Wheel Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 19
Rear Wheel Aluminum Rim, Gravity
Cast Hub, RR: 2.15 x 16
Front Tires 70/100-19
Rear Tires 90/100-16
Front Brake Dual Piston Caliper, 240mm Disc
Rear Brake Single Piston Caliper, 240mm Disc

Frame/Suspension/Brake/Wheel System

Frame: Lightweight ,Steel Tube Frame
Swing-Arm: Tube High Strength Steel Swingarm: L=560mm
Handle Bar: Tapered Aluminum #6061
Overall Size Length×Width×Height: (‌Inches)78X32X45.7 / (mm)1981X812X1160
Packing Size: (‌Inches)67.3X17.5X34 / (mm)1709X444X863
Wheel Base: 53.1"
Seat Height: 34.6"
Ground Clearance: 13"
Fuel Capacity 2 Gal.
N.W 231lbs /231kg
G.W 297lbs /134kg

Product Dimensions
• Length×Width×Height: (‌Inches)67*17.5*34 / (mm)1701*444*863
• Weight : 302Lbs /137kg
